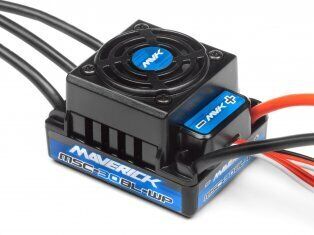

Maverick MSC-30BL-WP Brushless Speed Controller (T-Plug)

Replacement Brushless ESC for the Strada Red series of cars

Can also be used to upgrade the standard Strada when used inconjunction with a Brushless Motor:
#MV22602 - MM - 22BL 3215KV Brushless Motor

MSC-30BL-WP BRUSHLESS SPEED CONTROLLER
Features

Water-resistant* and dust-proof. The ESC has been designed towork in wet conditions.
2-3S Capable (for 3S you must change the standard 5V coolingfan to a 12V cooling fan, or supply the 5V cooling fan from thereceiver 5-6V);
Compatible with sensorless brushless motor.
2 running modes (Forward with brake mode,Forward/Backward with brake mode).
Proportional ABS brake function with 4 steps of maximum brakeforce adjustment, 8 steps of drag-brake force adjustment.
4 Punch modes from Soft to Veryaggressive to be suitable for different chassis, tires andtracks.
Multiple protection features: Low voltage cut-off protectionfor Lipo or NiMH battery / Over-heat protection /Throttle signalloss protection / Motor blocked protection.
Easily programmed with the SET button

*Please remove the cooling fan when running the ESC very wetconditions.
*After running the ESC in wet conditions, please clean and dry itto avoid the oxidation to copper connectors

Specification

Continuous Current: 45A
Burst Current: 220A
Resistance: 0.0012 ohm
Application: 1/10 scale on-road and off-road
Motor Limit:
2S LiPo or 6 cells NiMH - On-road: ?9T, Off-road: ?12T,3650 size motor
3S LiPo or 9 cells NiMH - On-road: ?12T, Off-road: ?18T,3650 size motor
Battery: 4-9 Cells NiMH or 2-3S Lipo**
Built-in BEC: 6V/2A
Program Port: Multiplexed with cooling fan port
Motor Type: Sensorless Brushless
Dimension: 48.5 x 38 x 32mm
Weight (with wires): 90g

**1) For 4-6 cells NiMH or 2S Lipo: You needn't change the 5Vcooling fan on the ESC;
**2) For 7-9 cells NiMH or 3S Lipo: You must change the original 5Vcooling fan to 12V cooling fan, or supply the 5V cooling fan fromthe receiver (5-6V);

Download PDF instructions for #MV30003 (3.2 MB)

Compatible With:

MV150200 - Quantum MT Flux Standard Part
MV150201 - Quantum MT Flux Standard Part
MV150206 - Quantum XT Flux Standard Part
MV12621 - Maverick Strada XB Brushless Standard Part
MV12622 - Maverick Strada XT Brushless Standard Part
MV12623 - Maverick Strada MT Brushless Standard Part
MV12624 - Maverick Strada TC Brushless Standard Part
MV12625 - Maverick Strada SC Brushless Standard Part
MV12626 - Maverick Strada DC Brushless Standard Part
MV12627 - Maverick Strada RX Brushless Standard Part
MV12628 - Maverick Strada DT Brushless Standard Part
MV150100 - Quantum MT Option Part
MV150101 - Quantum MT Option Part
MV150105 - Quantum XT Option Part
MV150106 - Quantum XT Option Part
MV12613 - Maverick Strada XB Option Part
MV12614 - Maverick Strada XT Option Part
MV12615 - Maverick Strada MT Option Part
MV12616 - Maverick Strada TC Option Part
MV12617 - Maverick Strada SC Option Part
MV12618 - Maverick Strada DC Option Part
MV12619 - Maverick Strada RX Option Part
MV12620 - Maverick Strada DT Option Part
