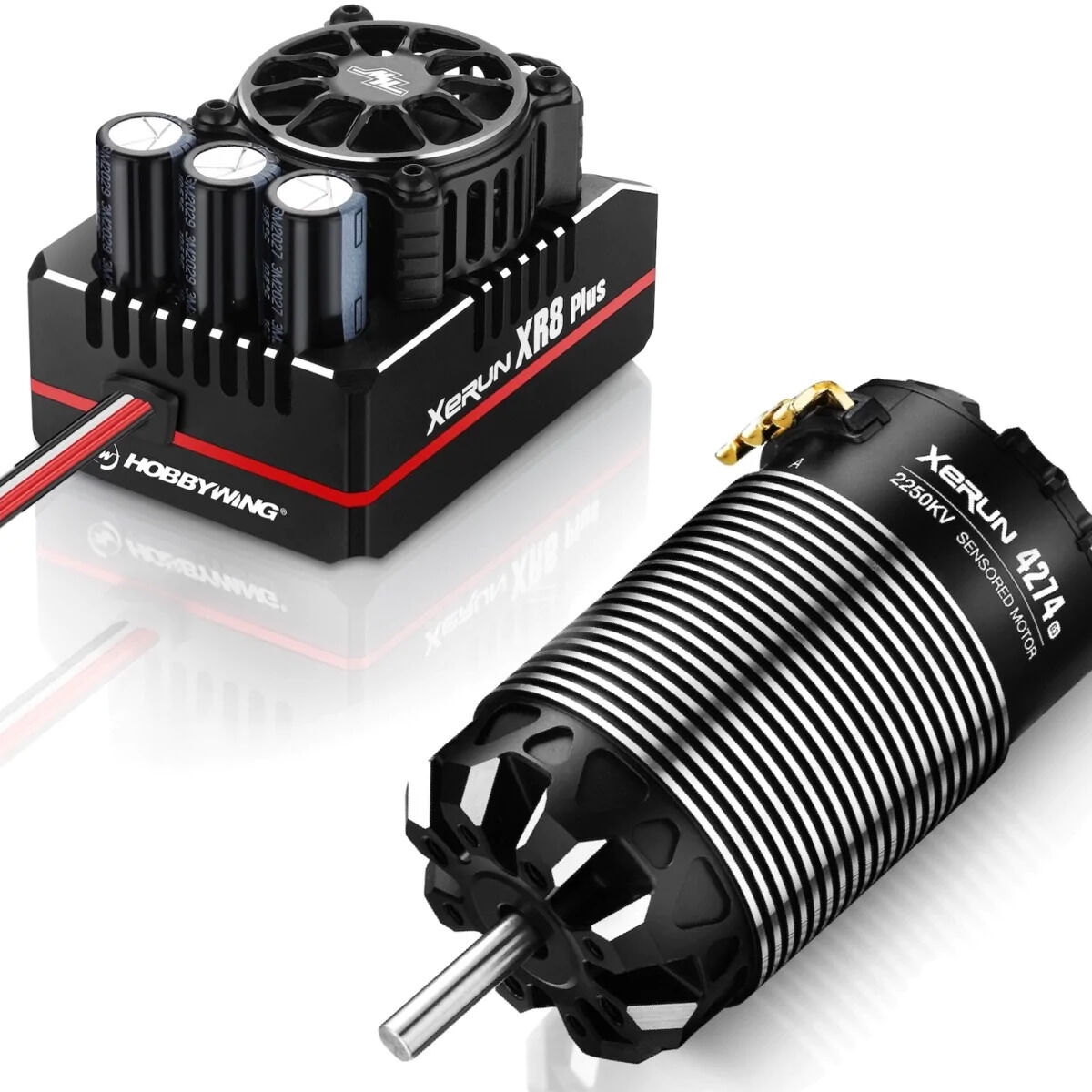

Hobbywing Motor Specs Best application: 1/8th Monster Truck, SCT, Buggy, Truck, and Touring Car Turbo Timing Technology Full Sensored mode (when paired with XR8 ESC series) Adjustable Timing (Bi-Directional) 20-40 degrees Advanced Hall Sensor System 4-pole-8-magnet "Staggered Pole" rotor - HOBBYWING Patented design Guarantees users effective heat dissipation and dust-prevention The use of double insulated windings (240°C R-rated), NMB bearings from Japan, and the high-intensity adhesive (340°C) guarantees users outstanding performance and super durability. kv 2250kv pole 4 Lipo 2S-6S No-load current (A) 5.4 Size. O.Dia (mm) / length (mm) 42/74 Shaft dia (mm) 5 Weight (g) 354 ESC Specs: Edition Package XR8 Plus G2S Lipo 2-6S Wire Gauge 11AWG Cont./Peak Current 200A/1080A Motor Limit With 4S Lipo: KV≤3000 4268 / 4274 Size motor With 6S Lipo: KV≤2400 4274 Size motor BEC Output 6-8.4V Adjustable, Continuous/Peak Current: 6A/15A(Switch-mode) FFD Technology* YES Cooling fan Included Fan Filter Included Decals Included
SKU HW38020504
Brand Hobbywing
