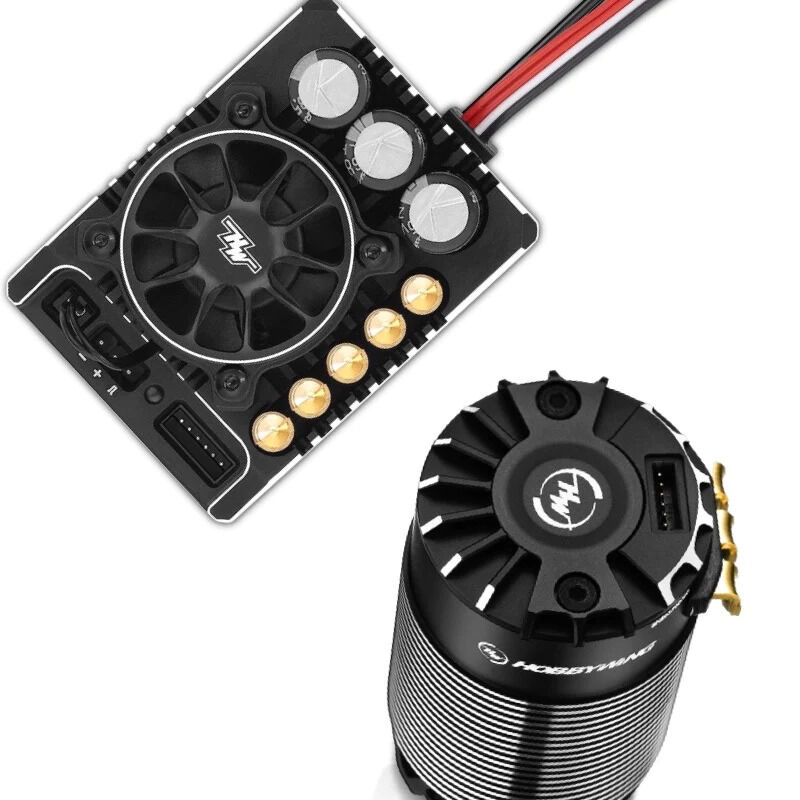

Hobbywing Motor Specs Suitable for 1/8th SCT, Buggy and Touring Car Turbo Timing Technology Full Sensored mode (when paired with XR8 Plus G2S ESC) Adjustable Timing (Bi-Directional) 20-40 degrees Advanced Hall Sensor System 4-pole-8-magnet "Staggered Pole" rotor - HOBBYWING Patented design Guarantees users the effective heat dissipation and dust prevention The use of double insulated windings (240°C R-rated), NMB bearings from Japan, and the high-intensity adhesive (340°C) guarantees users the outstanding performance and super durability. kv 2200kv pole 4 Lipo 2S-6S R. (Ω) 0.0069 no load current (A) 4.1A Size. O.Dia / Length (mm) 42/68 Weight (g) 285 Vehicles 1/8 OffRoad ESC Specs: Edition Package XR8 Plus G2S Lipo 2-6S Wire Gauge 11AWG Cont./Peak Current 200A/1080A Motor Limit With 4S Lipo: KV≤3000 4268 / 4274 Size motor With 6S Lipo: KV≤2400 4274 Size motor BEC Output 6-8.4V Adjustable, Continuous/Peak Current: 6A/15A(Switch-mode) FFD Technology* YES Cooling fan Included Fan Filter Included Decals Included
SKU HW38020501
Brand Hobbywing
