Hobbywing

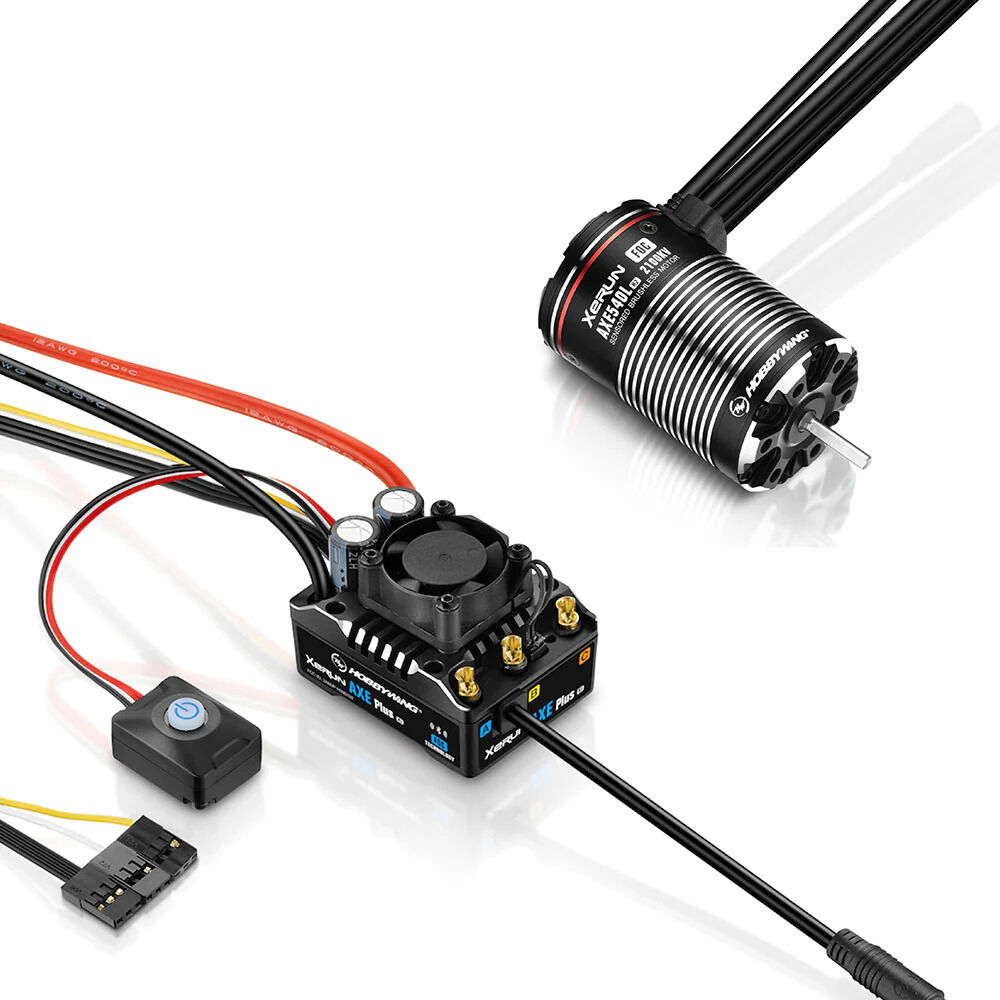

Experience the best of control and power with the Combo Xerun AXE Plus R3 & AXE 550L 3300KV R2 Motor by Hobbywing. This combination offers precise control and impressive performance for RC enthusiasts seeking top-tier performance. The Xerun AXE Plus R3 ESC ensures a smooth ride, while the AXE 550L 3300KV R2 Motor delivers powerful acceleration. Together, they elevate your RC adventures to new heights, ready to tackle any challenge.

Features Motor

  • FOC (Field-Oriented-Control) for super linearity and high torque
  • Patented Staggered Pole rotor design for ultra-low torque ripple
  • Applicable to all weather and track conditions
  • Built-in high precision magnetic encoder

Technical Specifications Motor

Type:Brushless FOC
Pole:4
KV Rating:3300KV
LiPo Cells:2S-3S
No Load Current:4.7A
Outer Diameter:36.0mm
Length:63.8mm
Shaft Diameter:5mm
Shaft Length:15.5mm
Weight:247g
Application:1/10 Rock Crawler

Features XeRun AXE Plus R3

  • Stronger performance thanks to FOC (Field-Oriented-Control) technology.
  • Drag brake adjustable up to 200% for unparalleled holding power on slopes.
  • Super BEC with max. 6A and three voltage levels for using different servos.
  • Waterproof and dustproof to IP67 standard.
  • Smart torque delivery and speed control for easy control and constant speed under all loads.
  • Built-in Bluetooth module.
  • Multiple controller protection functions including reverse polarity protection.
  • Only compatible with Xerun AX "R2" and "R3" motor series.

Technical Specifications XeRun AXE Plus R3

Type:Brushless Sensored FOC
Current (cont./peak):135A / 600A
Cells:2S-6S LiPo
Motor Limits:Only supports Xerun-AXE "R2" and "R3" motor series
AXE R2:540 / 540L / 550
AXE R3:4274
BEC:6V / 7.4V / 8.4V @ 6A (Switch Mode)
Waterproof:Yes
Cables:1x 12AWG (black, 265mm), 1x 12AWG (red, 265mm)
Fan:25 x 25 x 10mm, powered by BEC
Connectors:XT60
Programming:Per Bluetooth and "HW LINK"-App
Firmware Upgrade:Yes
Dimensions:49.5 x 37.9 x 32.8mm
Weight:126.5g
Application:1/10, 1/8, 1/6 Rock Crawler

SKU HW38020389
Brand HOBBYWING
